Coatron® X
The very compact design and construction, combined with an optimized workflow, high throughput, and lowest running costs, makes the Coatron X Series one of the strongest price-performance semi-automated coagulation analysers for small-to-mid laboratories.
Coagulation analyser series with up to 4 optical channels.
The very compact design and construction, combined with an optimized workflow, high throughput, and lowest running costs, makes the Coatron X Series one of the strongest price-performance semi-automated coagulation analysers for small-to-mid laboratories.
Clotting, chromogenic and immunological methods at quarter test volume (75 µL).
Self-instructing user dialogue via true colour touch display.
Bidirectional ASTM-1394 interface.
- Minimized consumption of rinse and cleaning solution
- Maintenance-free operation

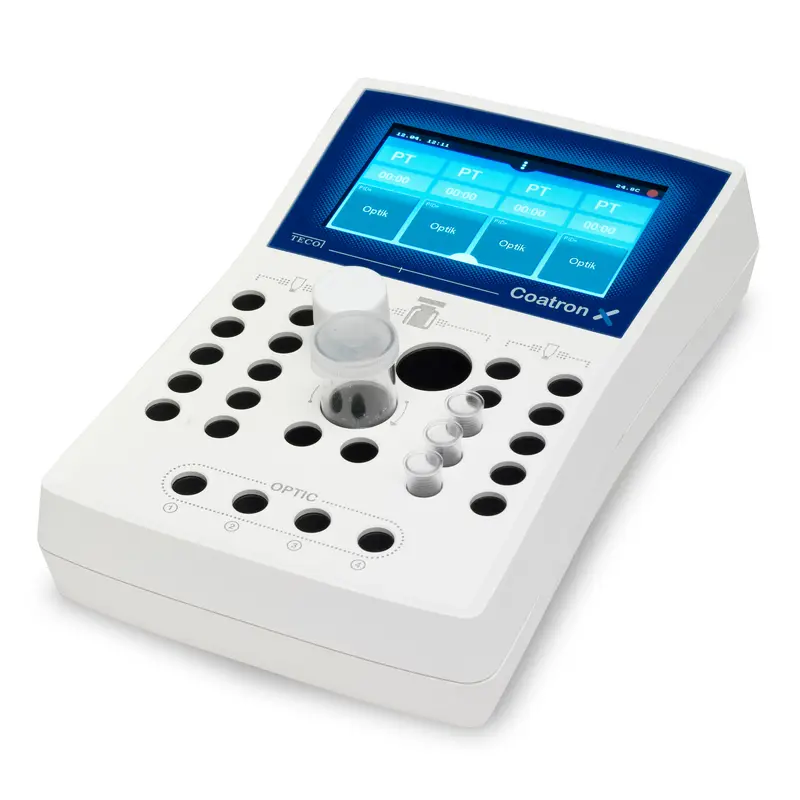

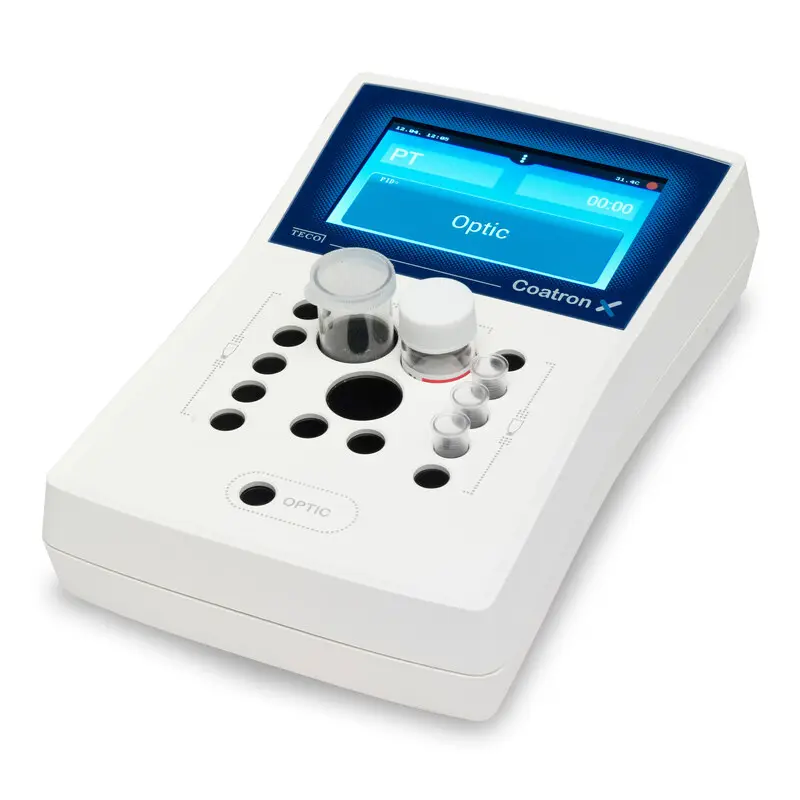

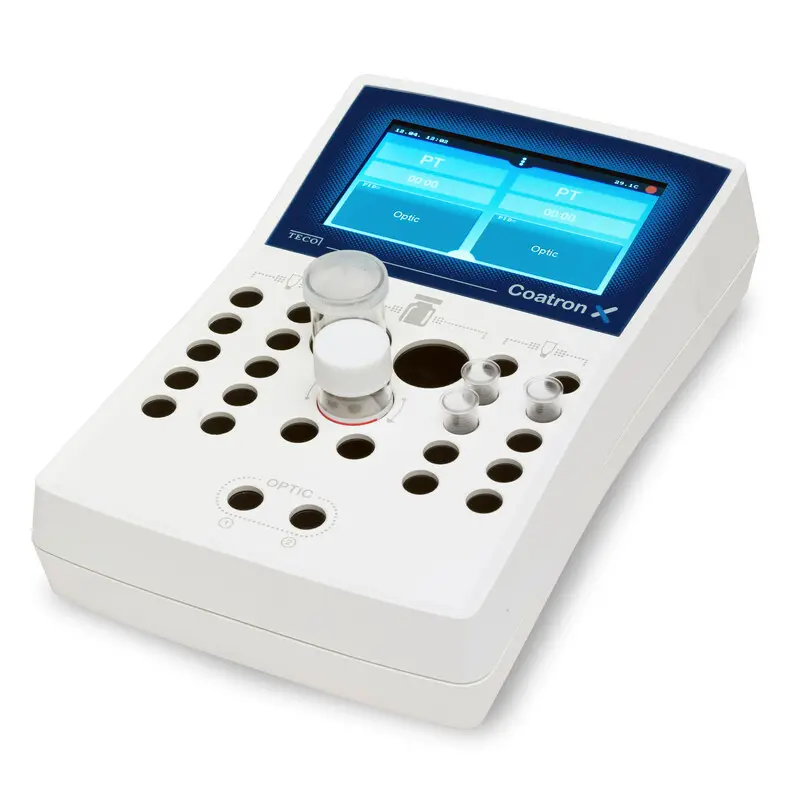

Coatron® X Coagulation analyzer
| Eco / Pro / Top | |
|---|---|
| Test menu | |
| Optic channels | 1 / 2 / 4 |
| Wavelength (nm) | 620 (red) / 405 (UV) / 405 (UV) |
| Global tests | PT, APTT, TT, FIB |
| Factor tests | – / Factors II, V, VII, VIII, IX, X, XI, XII / Factors II, V, VII, VIII, IX, X, XI, XII |
| Chromogenic tests | – / AT, PC / AT, PC |
| Immunoturbidimetric tests | D-Dimer (RED) / D-Dimer (BLUE), VWF, free PS / D-Dimer (BLUE), VWF, free PS |
| Whole blood tests | PT-B / – / – |
| DOAC tests | – / – / Anti Xa, Apixaban, Rivaroxaban, Edoxaban, LMWH |
| Measurements | |
| Auto Light Sensing | Yes, adaptive gain/light control for each channel |
| Stray light suppression | Yes, such as ambient light interferences |
| Air bubble detection | Yes |
| Waveform analysis | Yes, based on optical density |
| Our unique detection principle, based on Auto Light Sensing (ALS) combined with intelligent biphasic waveform analysis and stray light elimination, ensures outstanding analytical performance while minimizing optical interferences such as bilirubin. | |
| User Interface | |
| Display | True Colour Touch Display 4.3" |
| Operation | |
| Methods | clotting, chromogenic and immunoassays |
| Test volume | 75 µL (e.g. PT: 25 µL sample + 50 µL reagent) |
| Random access | yes, up to 4 different tests |
| Automatic test start | yes, no cable pipet required |
| QC testing | yes, Westgard rules and Levey Jennings diagram |
| Reaction curve visualization | yes |
| Interferences | |
| Haemoglobin | 5.00 g/l |
| Bilirubin | 50 mg/dl |
| Triglyceride | 1000 mg/dL (PT, aPTT); 2500 mg/dL with high-speed centrifugation |
| Interfaces | |
| RS232 (2×) | Printer, 2D Barcode reader |
| USB (2×) | Network, Firmware update |
| Connectivity | |
| Connectivity | Bidirectional ASTM-1394 (RS232 or network) optional with TECAM software |
| Dimensions | |
| Dimensions | 230 x 148 x 94 mm (l, b, h) |
Why Choose Coatron X?
- Easy in operation – self instructing user dialogue
- Unique detection principle combined with high-level analytical algorithms
- Available in three models (Eco, Pro, Top) to match your laboratory size
- Over 25 years of experience and innovation in coagulation analysis
- Reliable results with exact temperature control and stray light reduction
