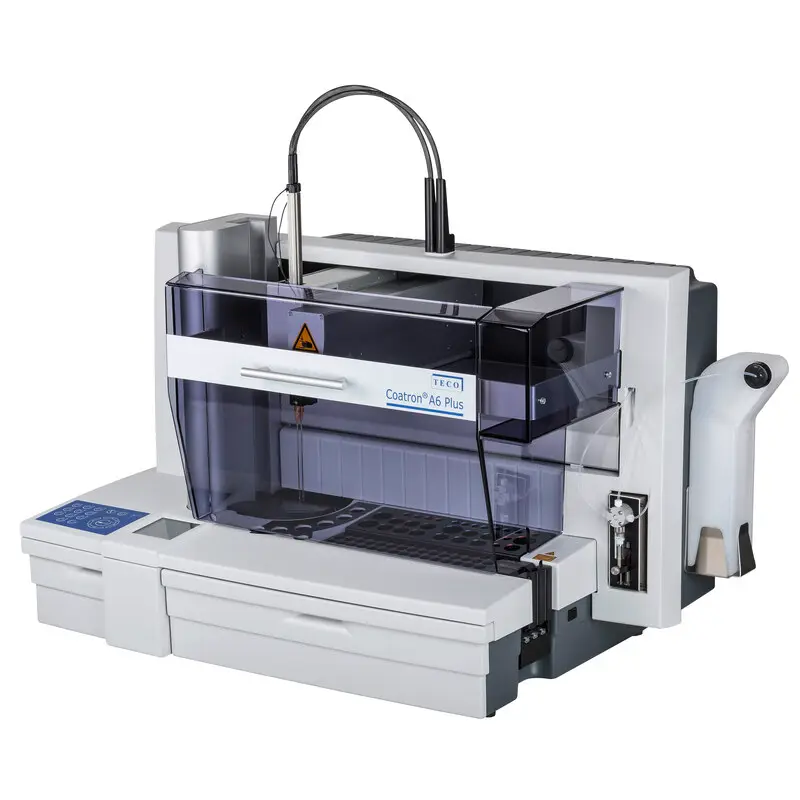

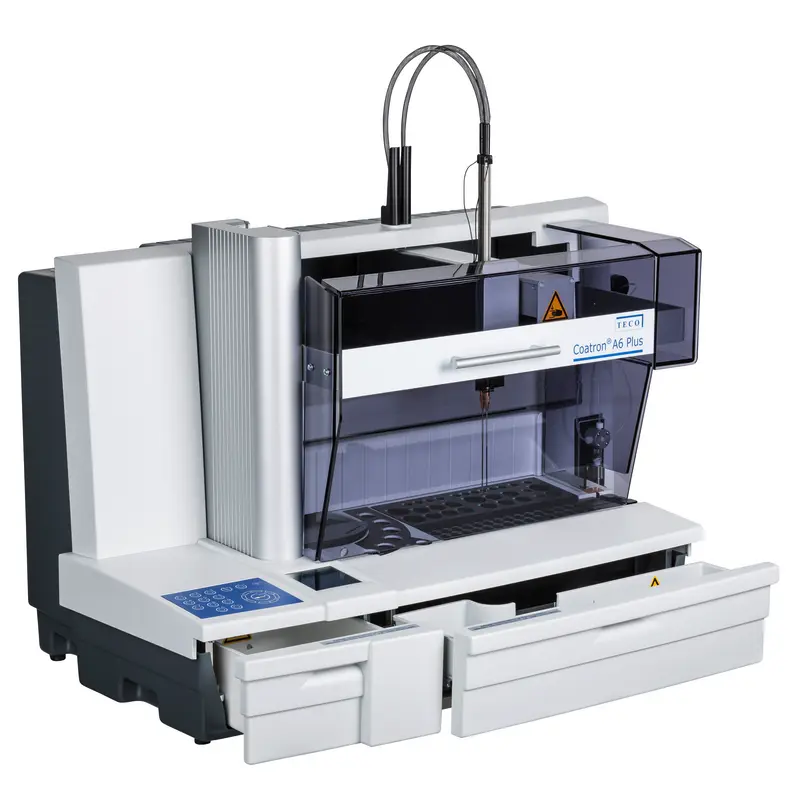

Coatron® A6 Plus
The very compact design and construction, combined with an optimized workflow, high throughput, and low running costs, makes the Coatron A6 Plus one of the strongest price-performance fully automated coagulation analysers for mid-to-big laboratories.
Coagulation analyser with 6 optical channels and high-speed XY dual-Z liquid handling system.
The very compact design and construction, combined with an optimized workflow, high throughput, and low running costs, makes the Coatron A6 Plus one of the strongest price-performance fully automated coagulation analysers for mid-to-big laboratories.
Clotting, chromogenic and immunological methods at quarter test volume (75 µL).
Up to 250 tests/h.
Auto Light Sensing (ALS) combined with intelligent biphasic waveform analysis and stray light elimination – minimizes optical interferences such as bilirubin.
Bidirectional ASTM-1394 interface.
- Minimized consumption of rinse and cleaning solution
- Virtually maintenance-free operation
Coatron® A6 Plus Coagulation analyzer
| Fully automated dual-Z high speed | |
|---|---|
| General | |
| Type | Fully automated coagulation analyser |

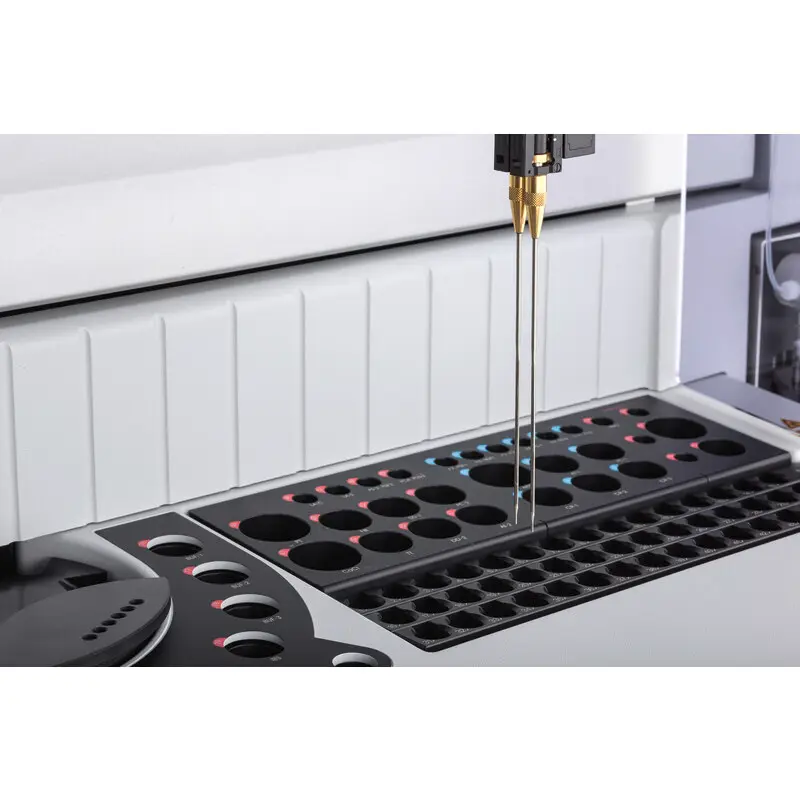

| XYZ system | Tecan Omni Dual-Z high speed system with two probes and liquid level sensing up to 50 µL |
| Liquid system | TECAN XKalibur 3 – 2500 µL |
| Optic system | 6 channel LED optic, 405 nm |
| Closed system | No, can be used with your own reagents |

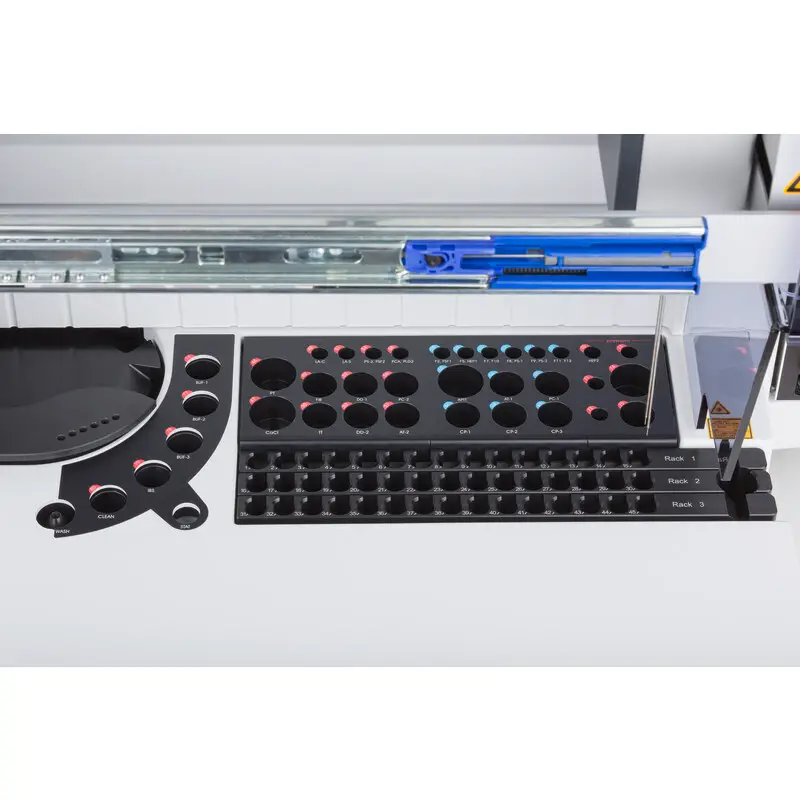

| Sample load | 3x 15 patients racks |
| Reagent load | 34x positions (heated, room and cooled) |
| Cuvette load | 270 tests |
| Connectivity | Bidirectional ASTM-1394 (RS232 or network) |
| Barcoding | yes, 1D for patients and reagents |
| Storage | 100.000 results |
| Dimension | 500 x 950 x 800 mm (l, b, h) |
| Weight | 52 kg |
| Operation | |
| Methods | clotting, chromogenic and immunoassays |
| Test volume | 75 µL (e.g. PT: 25 µL sample + 50 µL reagent) |
| Random access | yes, up to 9 different tests |
| Auto test calibration | yes |
| Reflex testing | yes |
| QC testing | yes, Westgard rules and Levey Jennings diagram |
| Reaction curve visualization | yes |
| Measurement | |
| Auto Light Sensing | Yes, adaptive gain/light control for each channel |
| Stray light suppression | Yes, such as ambient light interferences |
| Air bubble detection | Yes |
| Waveform analysis | Yes, based on optical density |
| Our unique detection principle, based on Auto Light Sensing (ALS) combined with intelligent biphasic waveform analysis and stray light elimination, ensures outstanding analytical performance while minimizing optical interferences such as bilirubin. | |
| Interferences | |
| Haemoglobin | 9.00 g/l |
| Bilirubin | 40 mg/dl |
| Triglyceride | 1000 mg/dL (PT, aPTT); 2500 mg/dL with high-speed centrifugation |
| Throughput | |
| PT | 250/h |
| aPTT | 160/h |
| FIB | 210/h |
| DD | 100/h |
| PT+aPTT+FIB | 55/h |
| Test menu | |
| Global | PT, aPTT, TT, FIB (Clauss & PT derived), Heparin |
| Factors | II, V, VII, VIII, IX, X, XI, XII |
| Thrombophilia | D-Dimer, AT, PC, PS, APC-R, LA Screen+Confirm |
Why Choose Coatron A6 Plus?
- Proven reliability with thousands of installations worldwide
- Comprehensive technical support and training programs
- Regular software updates with new features and improvements
- Cost-effective operation with minimal reagent waste
